This widget is available to be added to custom dashboards. For more information on custom dashboards, please visit How to Create Custom Dashboards, andCustom Dashboard Widgets.
Overview

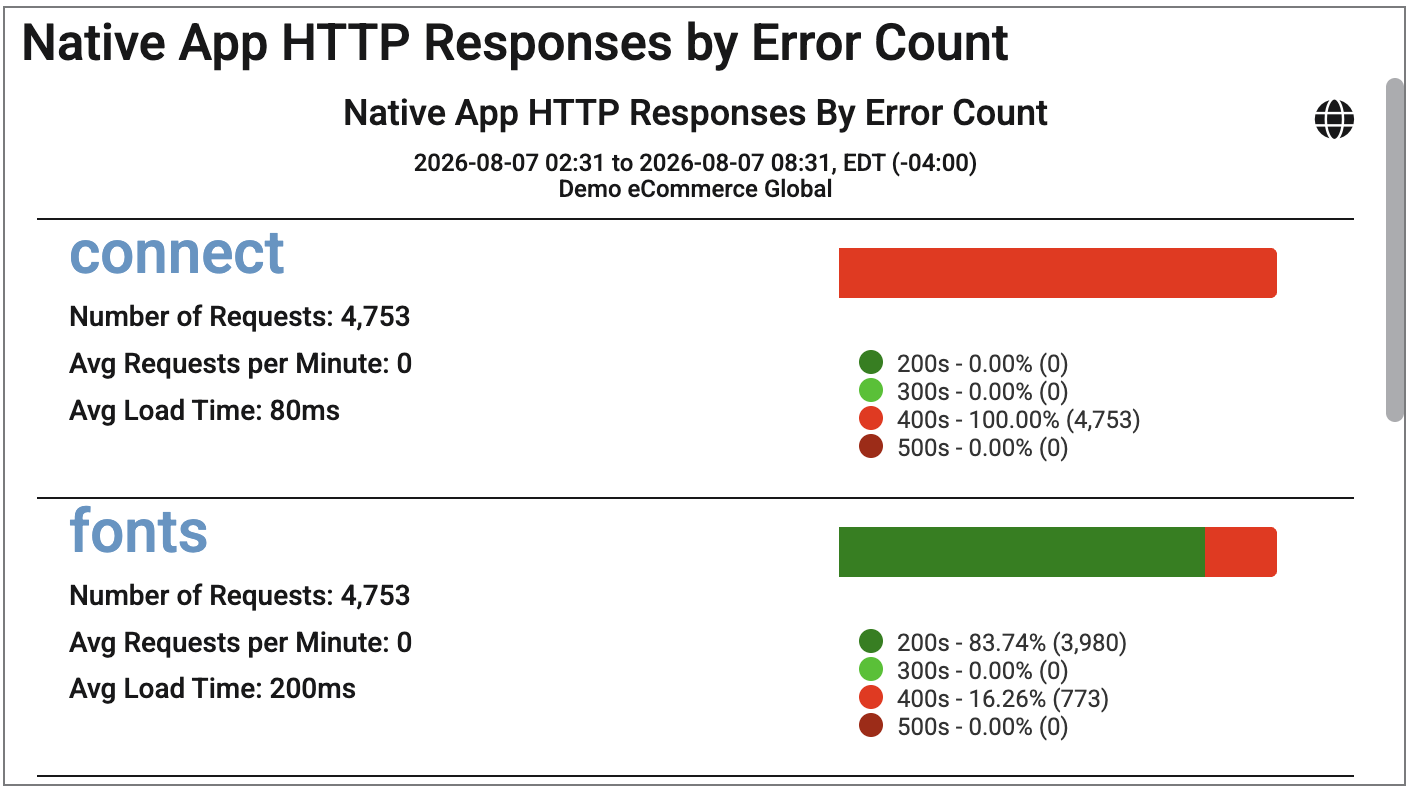

The Native App HTTP Failures widget helps user visualize the Native App HTTP failures that have been experienced over a specified period of time by displaying the top 10 Network Requests by error count.
Navigation from this widget will take the user to the Native App Aggregate Waterfall page.
The following data is provided for each Network request.
-
Number of Requests
-
Average Requests per Minute
-
Average Load Time
-
Percentage and Count of HTTP 200's, 300's, 400's, and 500's
Find Widget

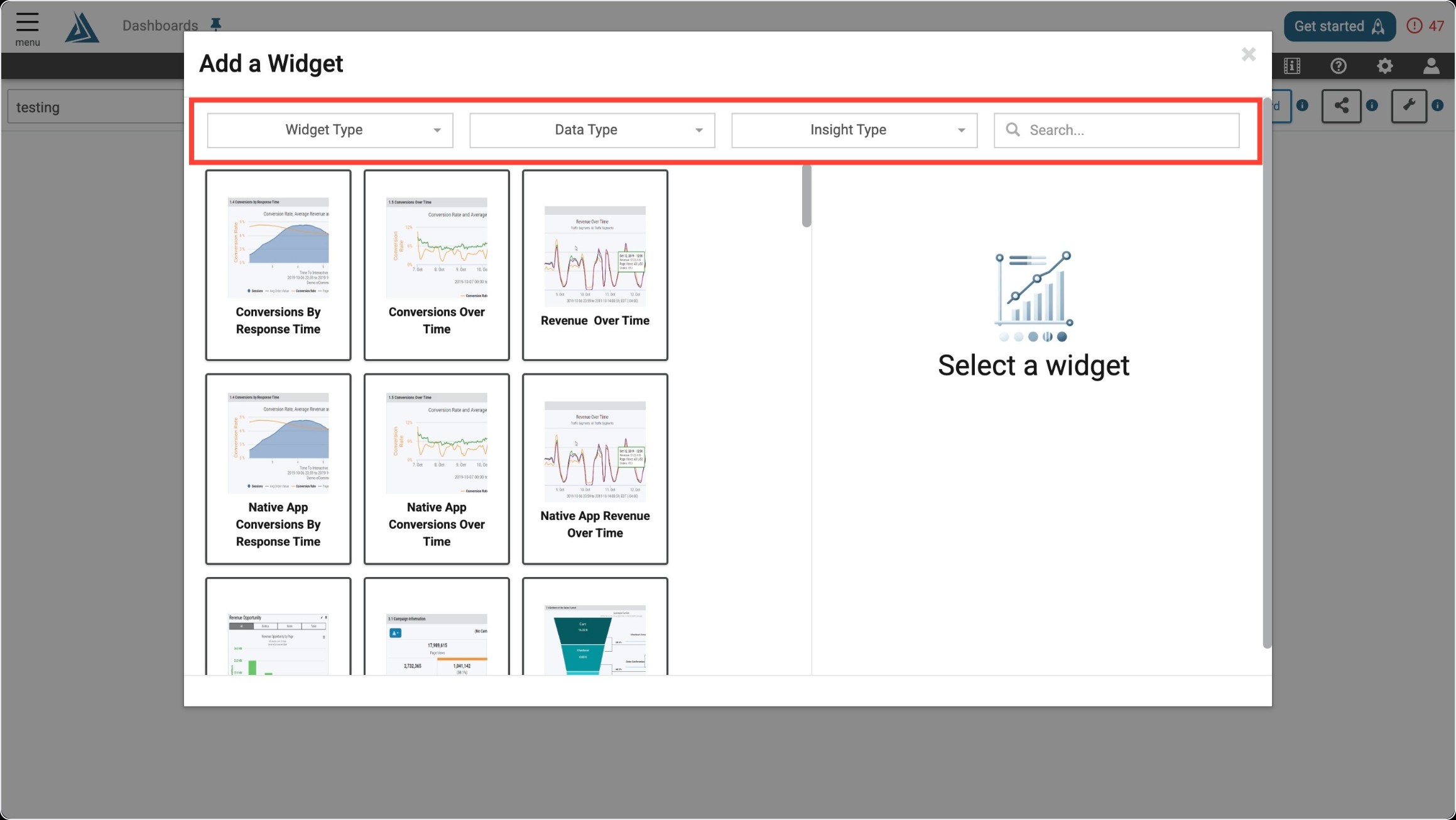

Once you enter the Add a Widget menu, you will see a variety of filter options on top. One way to find the Native App HTTP Responses By Error Count Widget is to use the filter options listed below.
|
Filter Title |
Filter Option |
|---|---|
|
Widget Type |
Summaries |
|
Data Type |
Real User |
|
Insight Type |
Performance |
Another way to find the Native App HTTP Responses By Error Count Widget is to use the search bar at the top right of the menu.

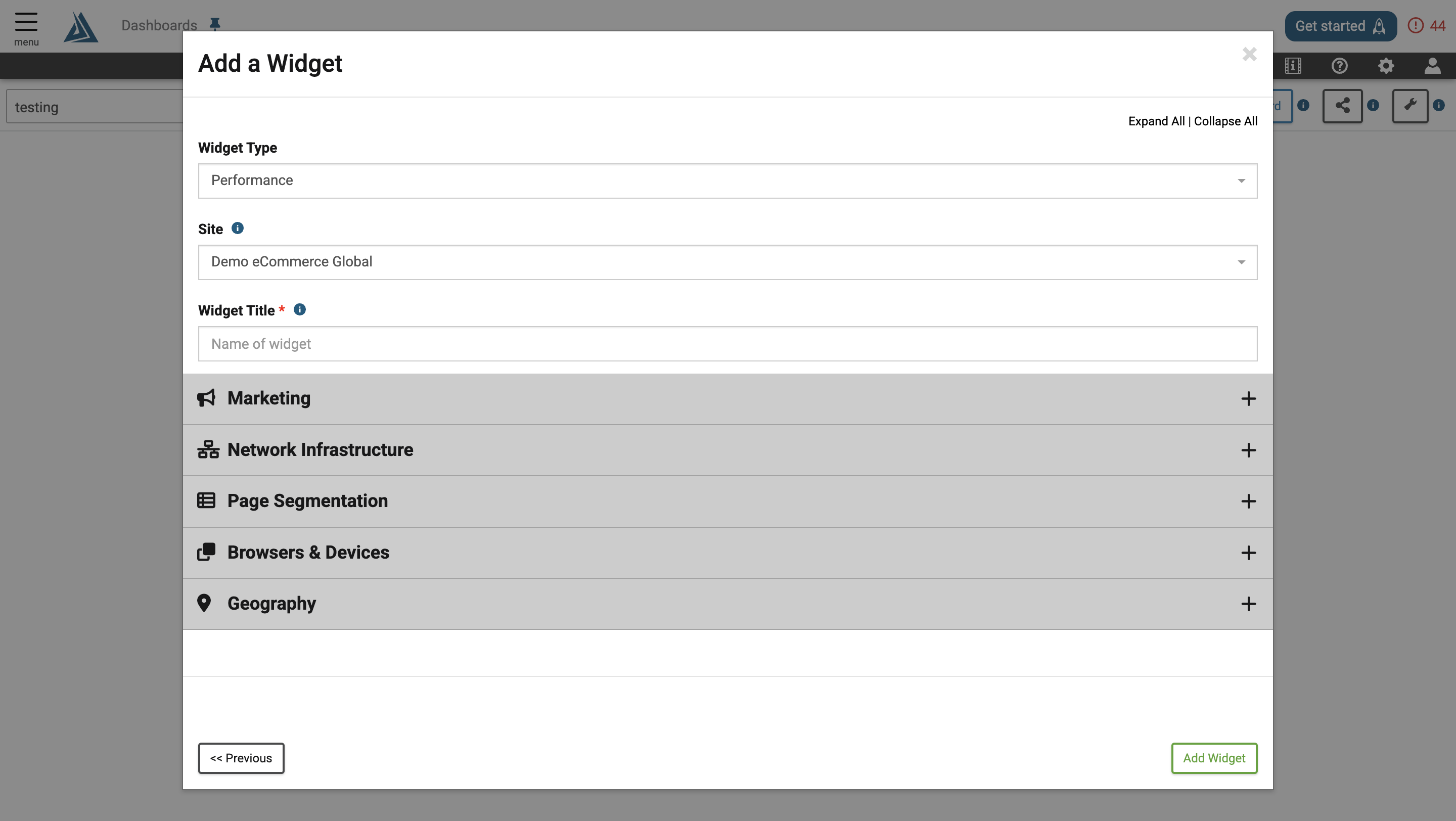

Widget Configuration
The only required configuration for this widget is a title. The general Marketing, Network Infrastructure, Page Segmentation, Browsers & Devices, and Geography filters are also available in the configuration window, but can be applied after the widget is created as well.
