Performance Widget

Overview

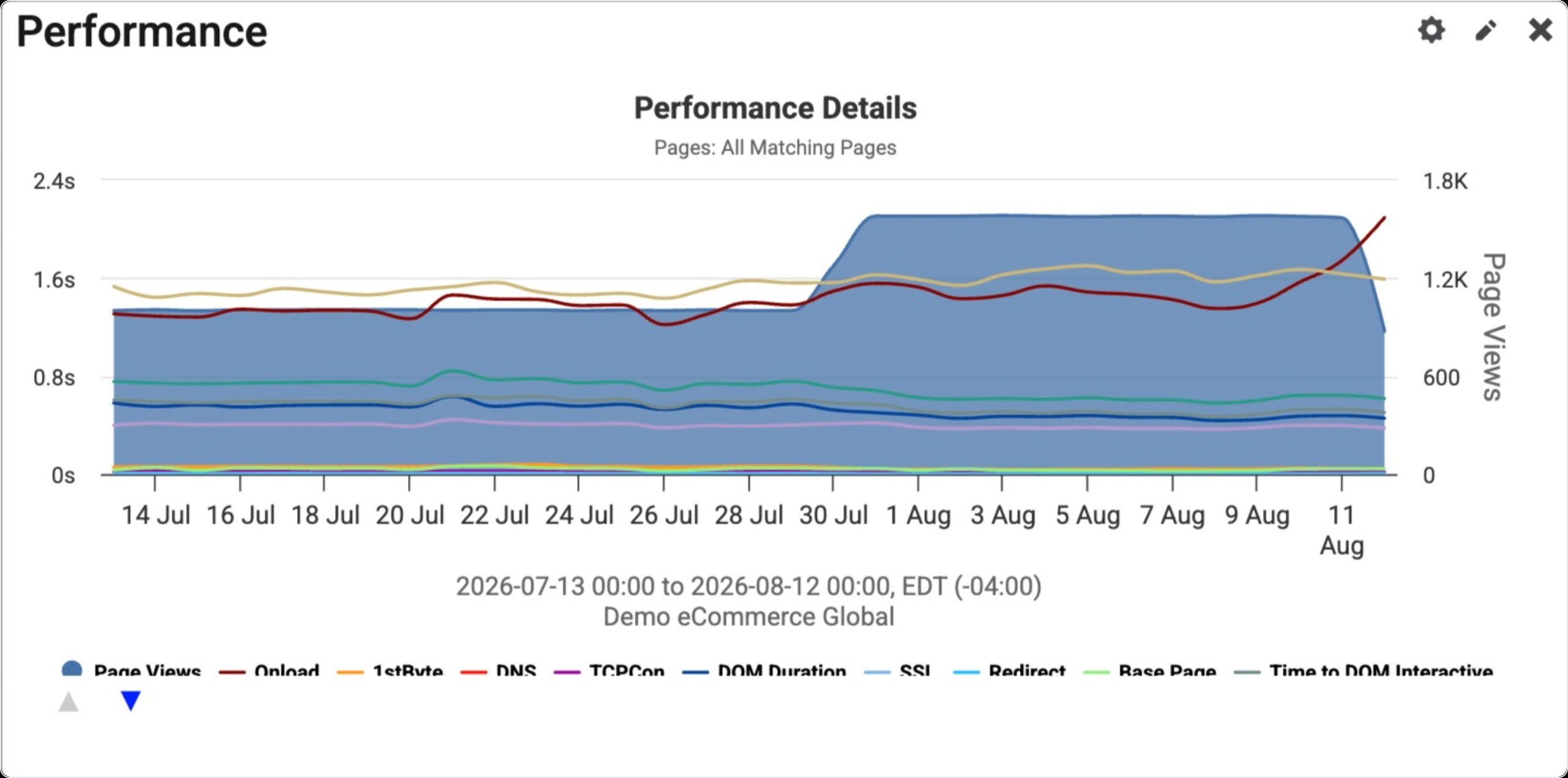

The Performance Widget is the main graph displayed on both the RUM and Synthetic Performance Detail pages. This widget is a line graph with various performance metrics displayed over the selected time period.

If you don't want to see all the metrics at once, you can click the legend items to hide/show the metrics in the graph. When applicable, you'll see additional axes appear to support the various metrics in the legend.

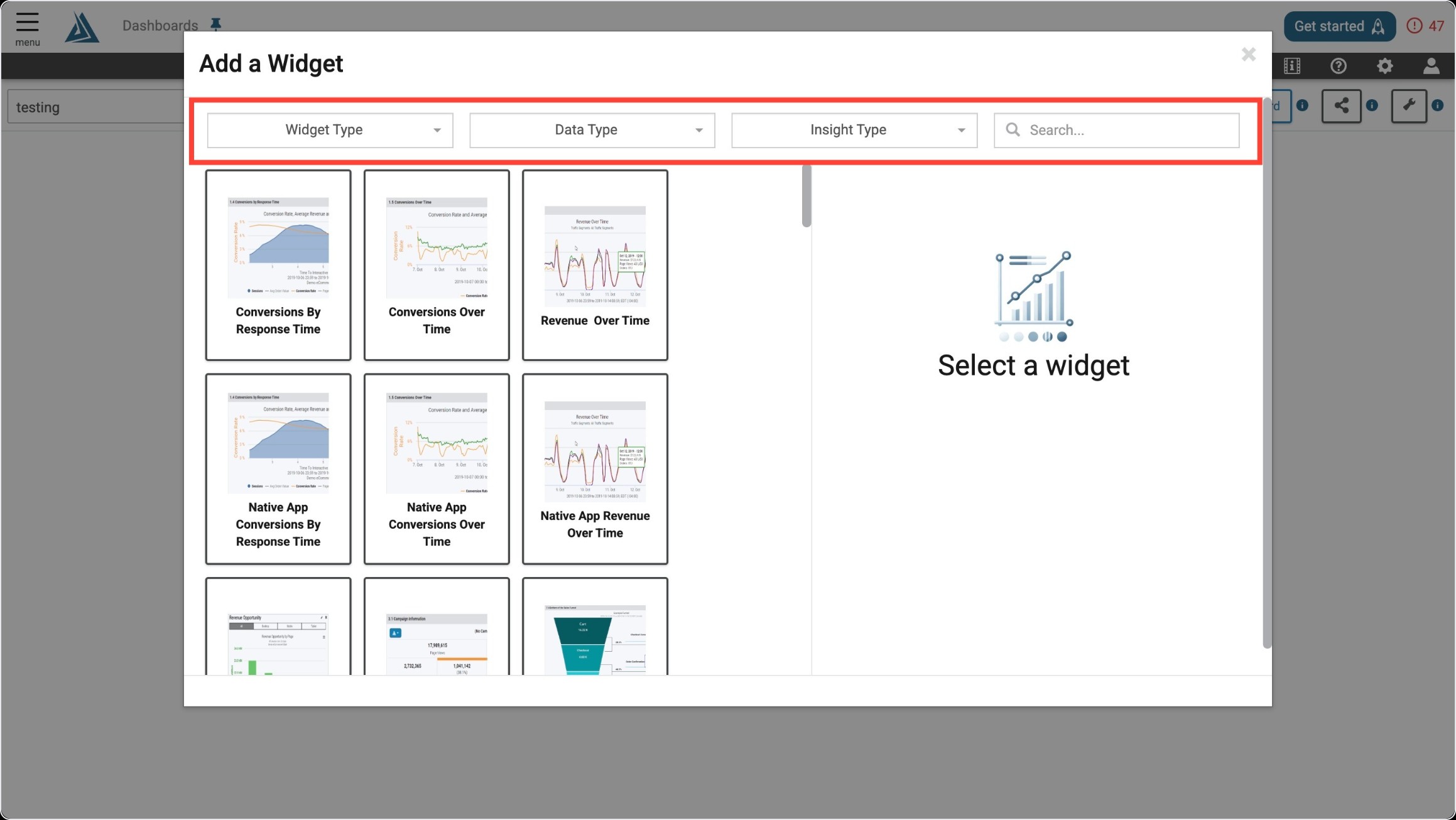

Once you enter the Add a Widget menu, you will see a variety of filter options on top. One way to find the Performance Widget is to use the filter options listed below.

Filter Title	Filter Option
Widget Type	Trends
Data Type	Real User
Insight Type	Performance

Another way to find the Performance Widget is to use the search bar at the top right of the menu.

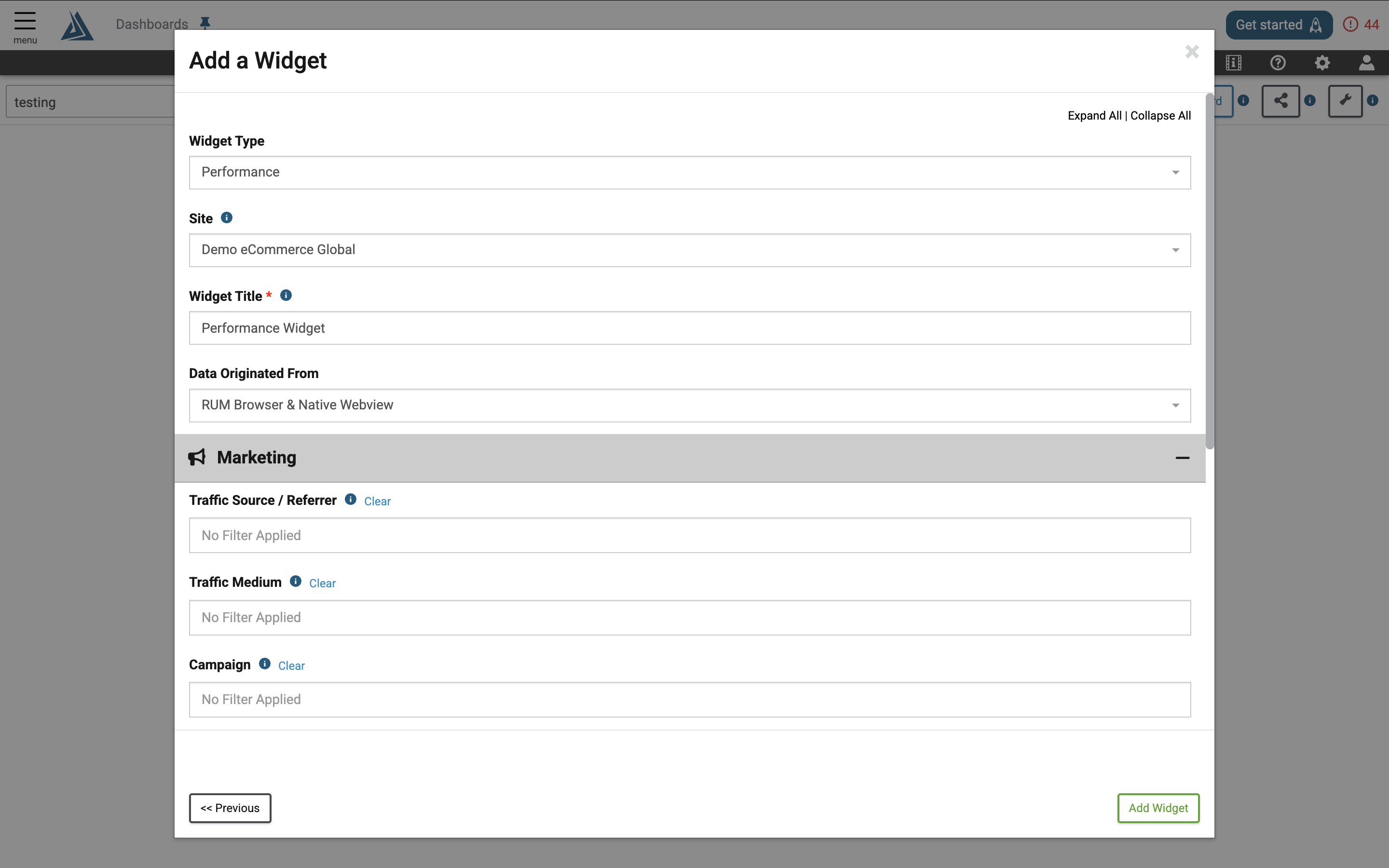

To configure this widget, fill out all required sections and apply any filtering you need.

RUM and Synthetic Metrics

The following are the metrics that can be displayed in the Performance Widget and whether they can be viewed in RUM, Synthetic, or Both.

Metric	RUM	Synthetic
INP	X
Page Views/Hits	X	X
Page Onload	X	X
Time to Interactive	X	X
First Contentful Paint	X	X
Largest Contentful Paint	X	X
Total Blocking Time	X	X
Cumulative Layout Shift	X	X
DOM Duration	X	X
Time to DOM Interactive	X	X
Time to DOM Content Loaded	X	X
JavaScript Errors	X	X
First Byte	X	X
DNS	X	X
TCP	X	X
SSL	X	X
Redirect	X	X
Base Page	X	X
Speed Index		X
Fully Loaded Time		X
First Paint		X
Page Size (Uncompressed)		X
Page Size (Compressed)		X
Total Elements		X
Image Size		X
Total Domains		X

For more information on the metrics shown in this widget, please see our glossary.
