Overview

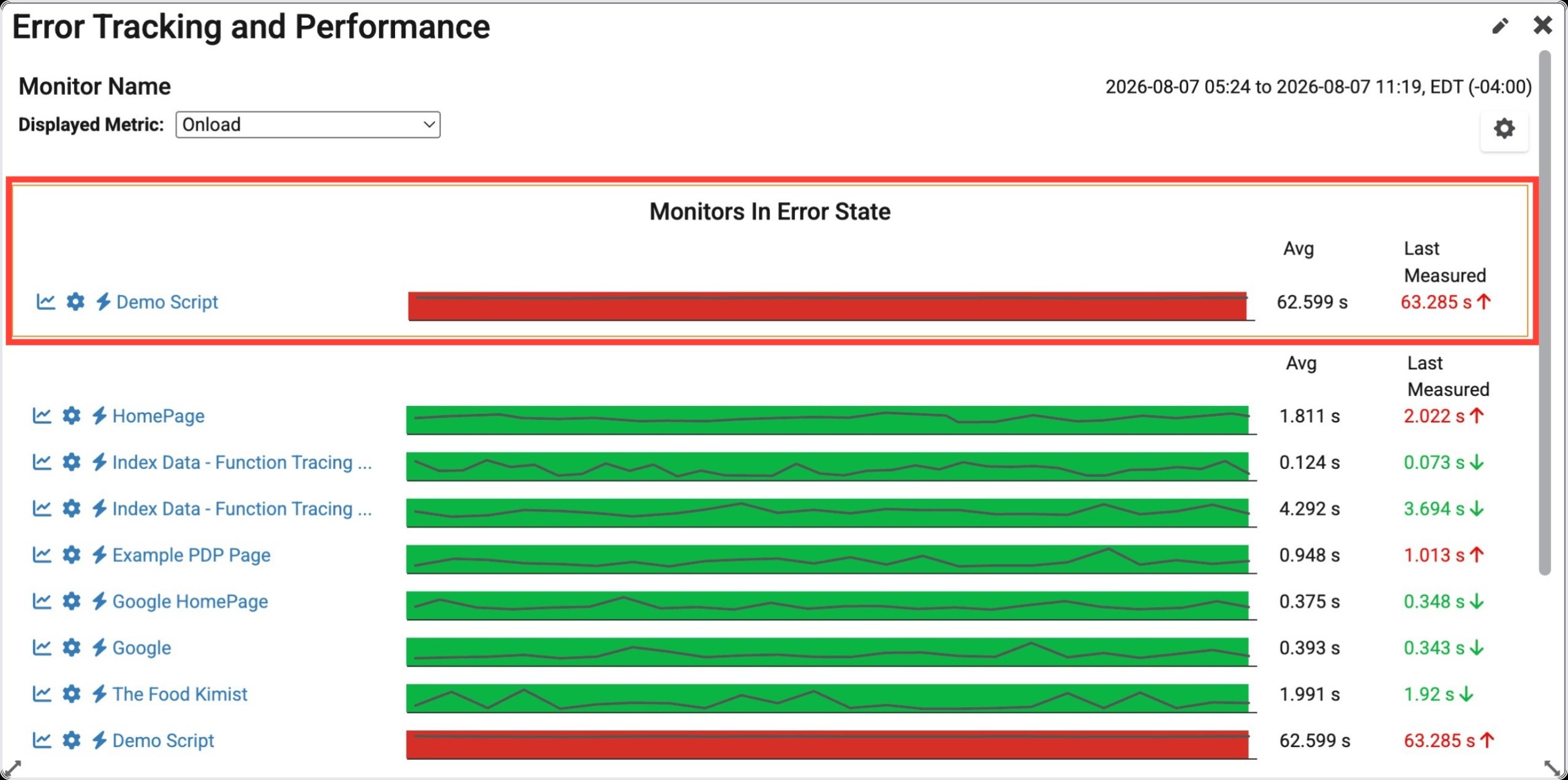

The Error Tracking and Performance Widget gives you a great summary of the health and performance of your active synthetic monitors. The widget lists all of your active monitors along with a performance and availability status bar.
Find Widget

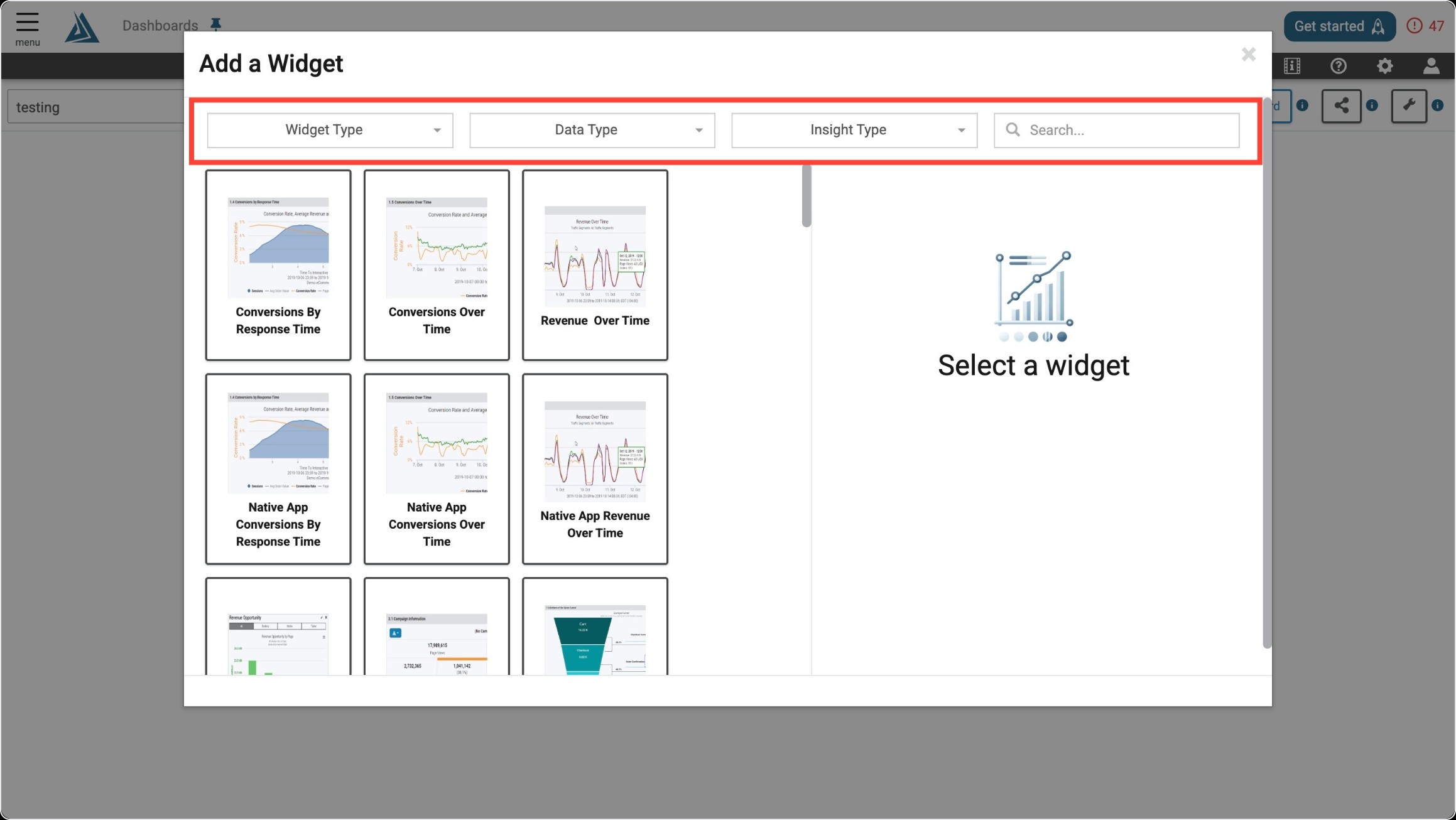

Once you enter the Add a Widget menu, you will see a variety of filter options on top. One way to find the Error Tracking and Performance Widget is to use the filter options listed below.
|
Filter Title |
Filter Option |
|---|---|
|
Widget Type |
Summaries |
|
Data Type |
Synthetic |
|
Insight Type |
Performance |
Another way to find the Error Tracking and Performance Widget is to use the search bar at the top right of the menu.
Widget Configuration

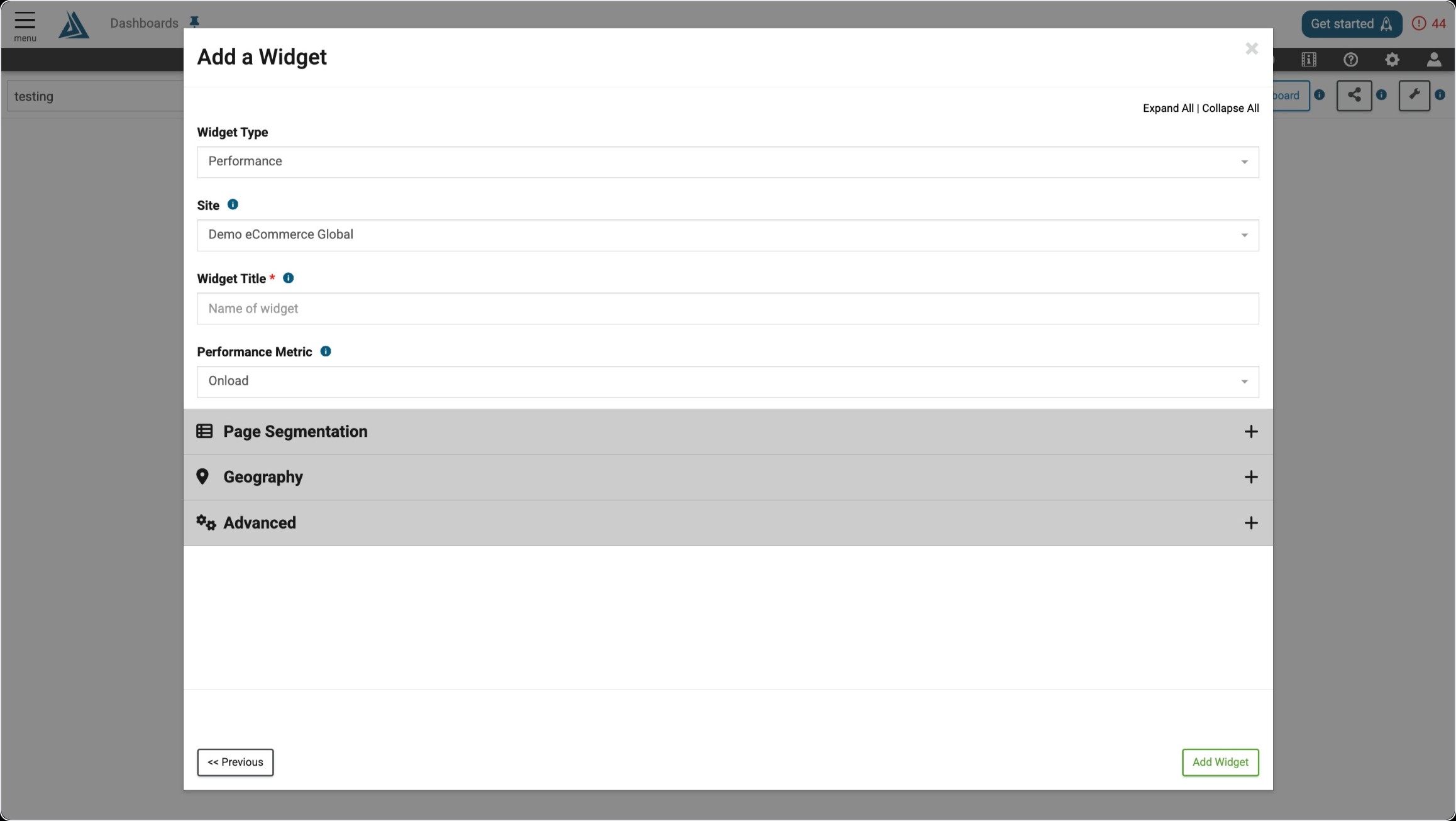

To configure this widget, fill out all required sections and apply any filtering you need.
Displayed Metric Selector

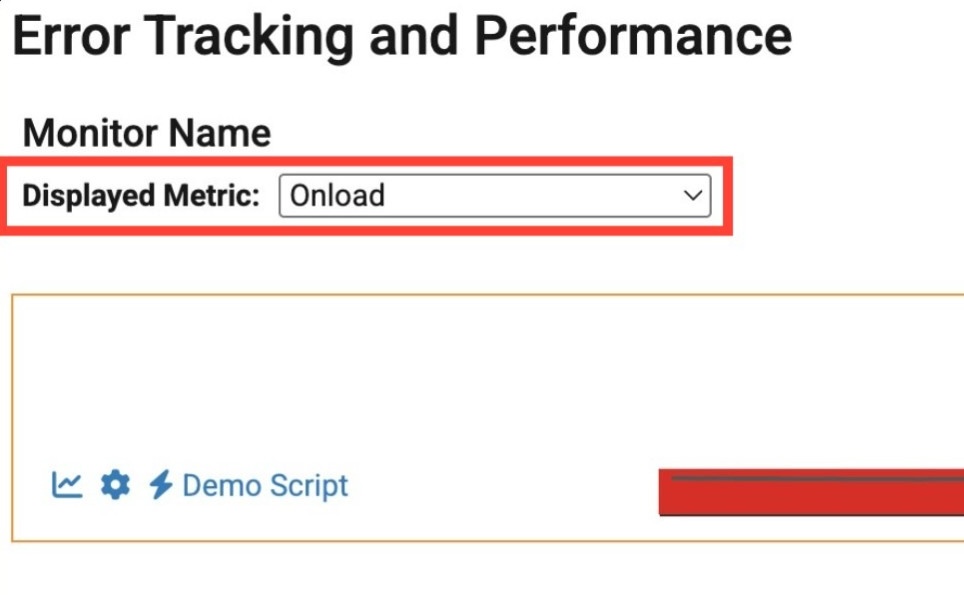

In the widget, the displayed Metric selector allows you to choose which metric is used for the performance line in the bar for each monitor. This is also the metric used to show the average and last measured times to the right of each monitor status bar.
Monitors in Error State
The "Monitors in Error State" section lists the monitors that are currently in error state. In the configuration for each synthetic monitor, there is an "Error Tracking" section for which this dashboard uses to determine whether the monitor is in Error State.
Note the monitors do not "move" from the list into the "Monitors in Error State" section, instead they are duplicated into the section to preserve the ordering and view of the widget.
In-Widget Settings

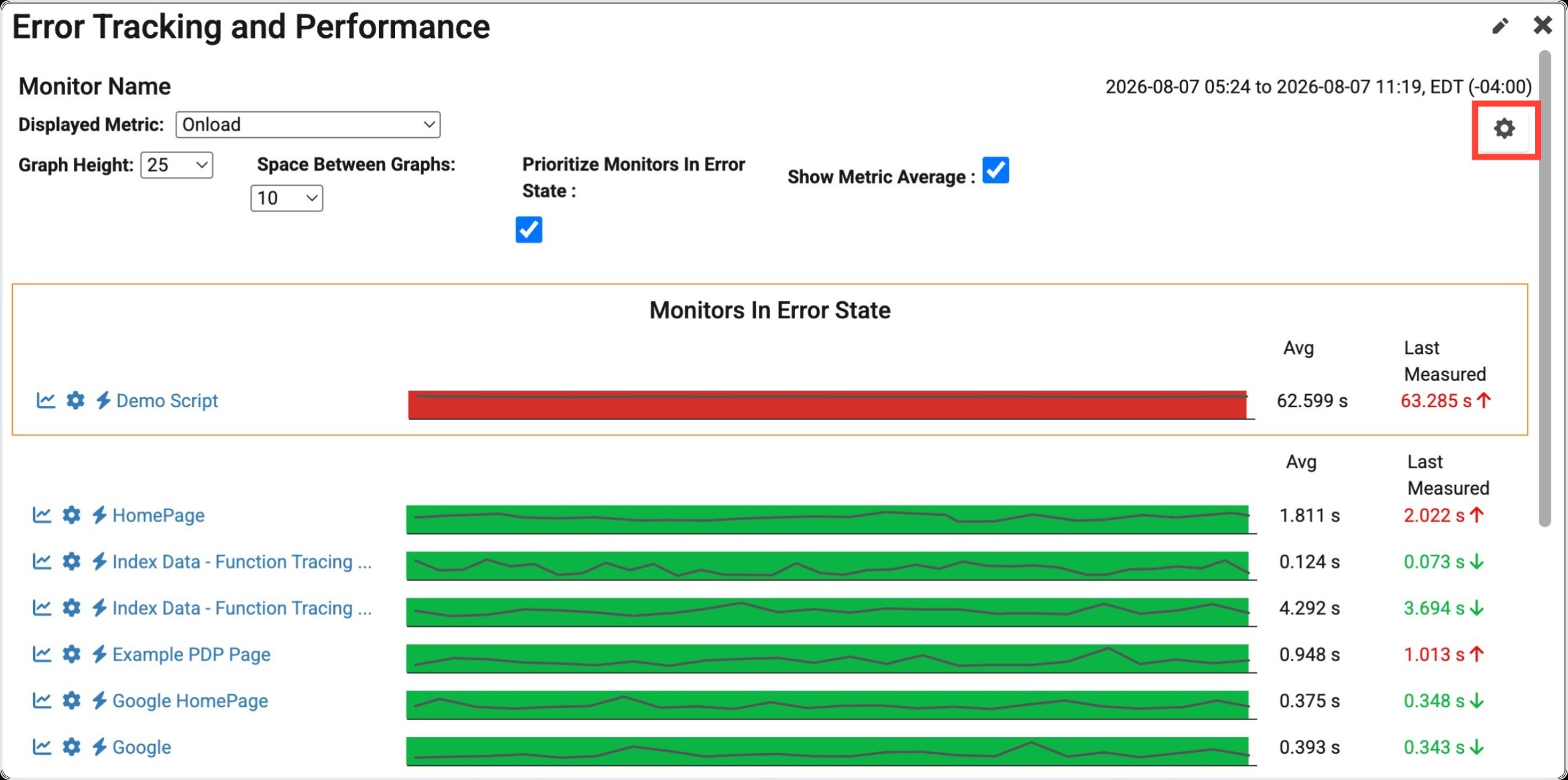

If you click the gear icon in the top right of the widget, a few options appears:
|
Graph Height |
Height of each monitor status bar in pixels. |
|---|---|
|
Space Between Graphs |
Pixels between each graph. |
|
Prioritize Monitors in Error State |
Show/Hide the "Monitors in Error State" section. |
|
Show Metric Average |
Show/Hide the "Avg" column to the right of each monitor status bar. |
Monitor Name Link

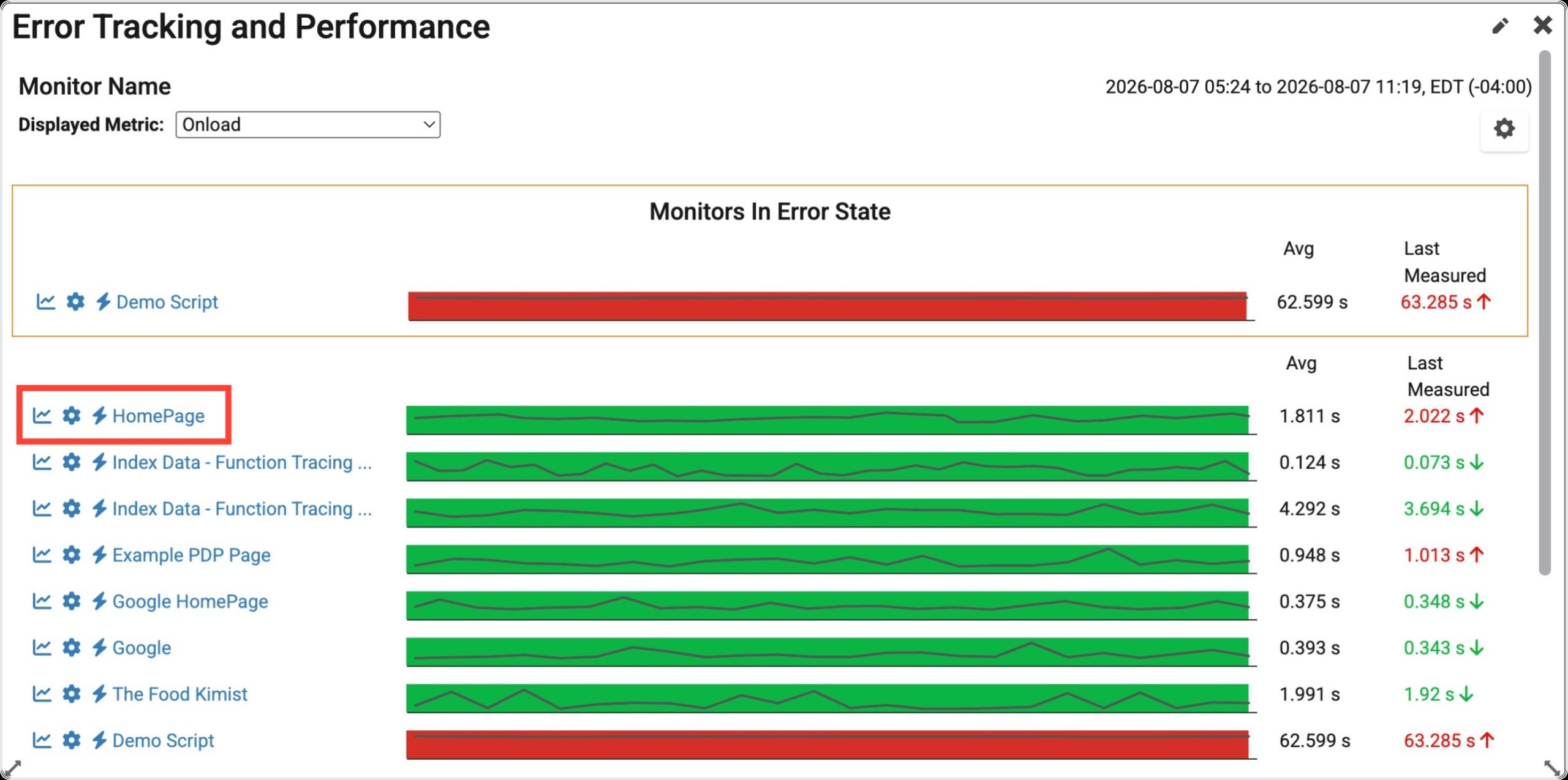

The monitor name links and icons located next to them have several different functions.
|
|
Monitor Name |
Open the Error State Tracking report in a new tab with that monitor selected. |
|---|---|---|
|
|
Lightning |
Run an instant measurement on the selected Monitor. |
|
|
Gear |
Open the Monitor Configuration Page in a new tab. |
|
|
Trend Graph |
Opens a view in a new tab of the chosen monitor in the Synthetic Performance Detail Page. |
Note: To define the severity of the HTTP codes or custom synthetic error codes in Blue Triangle you can use the Synthetic Codes page.
